Stopson Italiana completed the supply and installation of a noise barrier at the Trenord maintenance facility in Novate Milanese, as part of an acoustic mitigation project developed to meet the Customer’s requirements.
The project introduced technical improvements to an acoustic solution based on noise shielding systems, with the goal of reducing noise propagation toward the residential receivers located near the plant area.
Acoustic mitigation intervention for a railway maintenance facility
Stopson Italiana managed the supply of a noise barrier for the maintenance facility of Trenord S.r.l., a leading company in regional rail public transport.
The intervention was carried out at the Novate Milanese site and involved the acoustic protection of residential receivers located close to the pumping station and the fire-fighting water reserve.
Project objective
The aim of the project was the reduction of airborne noise propagation generated by a metal structure housing two electric circulation pumps, connected to several mechanical devices.
The solution was developed to improve acoustic comfort in the surrounding areas and ensure performance aligned with the targets required by the Customer.

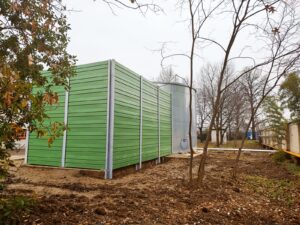

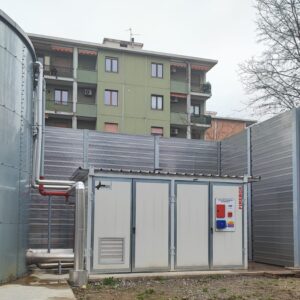

Features of the Stopson Italiana noise barrier
The supply included the installation of sound-absorbing and sound-insulating aluminium panels,
with the following characteristics:
-
barrier height: 4.5 m
-
material: sound-absorbing and sound-insulating aluminium
-
installation: fixed to the existing reinforced concrete foundation
This configuration was designed to ensure effective acoustic shielding in a sensitive infrastructure environment, where it was necessary to contain the noise generated by technological equipment.
Required acoustic performance and achieved results
One of the most relevant aspects of the project was the achievement of the required attenuation values near the receivers.
Required attenuation
-
Receiver 1: 10 dB(A)
-
Receiver 2: 4 dB(A)
Achieved attenuation
-
Receiver 1: 10.6 dB(A)
-
Receiver 2: 10.4 dB(A)
The achieved results confirm the effectiveness of the installed noise barrier, with values that met and exceeded the required performance, especially for the second receiver.
Stopson Italiana noise barriers: tailored solutions for infrastructure and industry
Stopson Italiana noise barriers are designed to meet high technical specifications and tailored application requirements. They stand out for design flexibility, build quality and the ability to adapt to different industrial and infrastructure contexts.
Available panel types
Stopson Italiana offers different panel solutions:
-
in natural or painted aluminium, sound-absorbing and sound-insulating
-
in painted steel, sound-absorbing and sound-insulating
-
in corten steel, sound-absorbing and sound-insulating
-
in wood, sound-absorbing and sound-insulating
-
in glass/PMMA, sound-insulating
Application fields
Noise barriers are among the most effective solutions for reducing acoustic pollution generated by multiple sources, including:
-
road and railway traffic
-
construction sites
-
industrial facilities
-
cogeneration plants
-
natural gas compression units
-
pumps, fans, mills and presses
A project confirming the effectiveness of Stopson Italiana solutions
The intervention carried out at the Trenord maintenance facility in Novate Milanese confirms Stopson Italiana’s ability to develop effective and customized acoustic solutions, capable of accurately meeting customer requirements and site-specific conditions.
Thanks to a performance-oriented design approach, the installed barrier improved noise mitigation toward sensitive receivers, contributing to the acoustic quality of the area and the overall functionality of the facility.
